The smartest way to lift EVs

Did you know how challenging it is to get the battery out of an EV? Lifting with standard pads is extremely time consuming. The standard lifting pad is bigger than the gap between the battery and the pick up point.

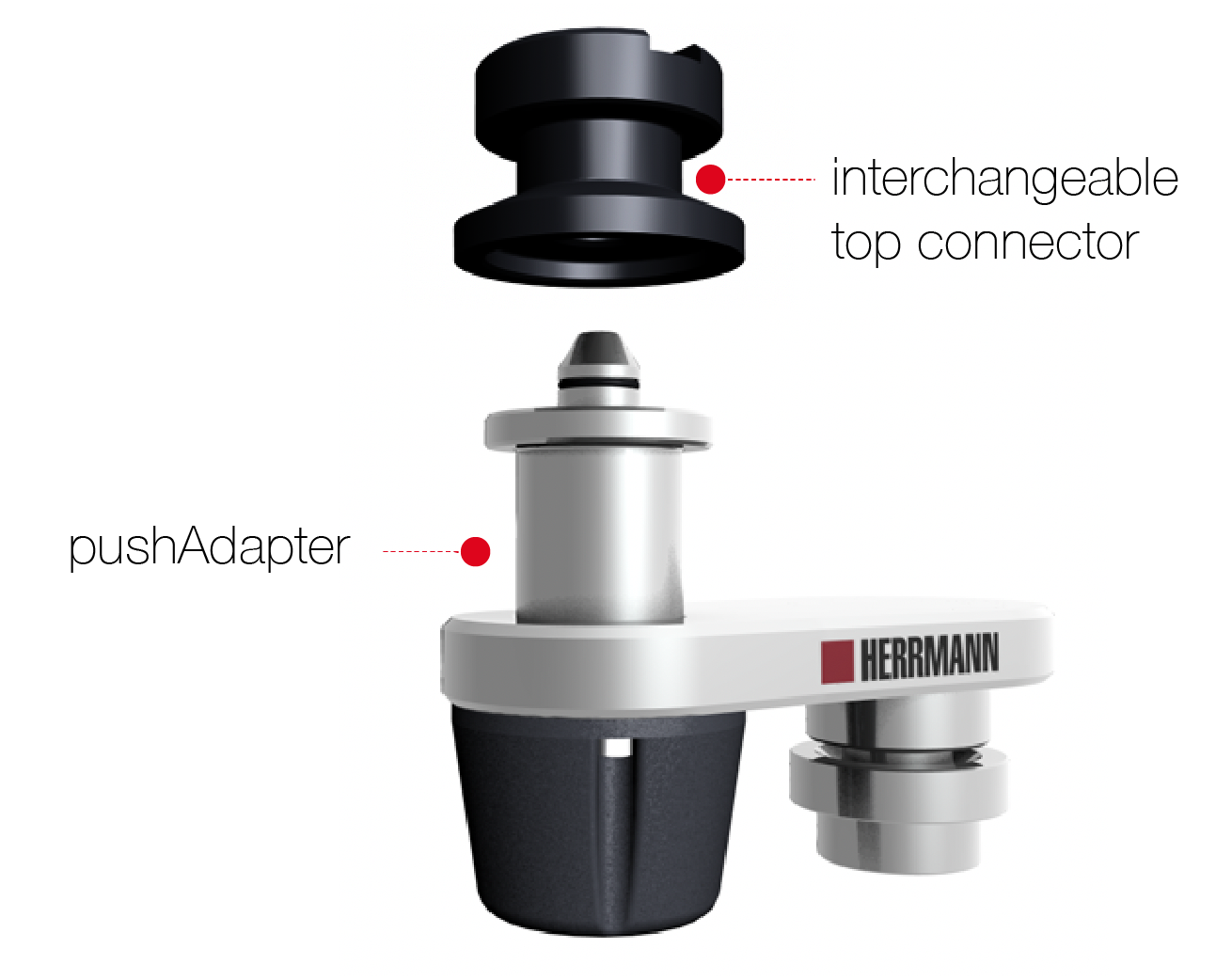

For exactly this purpose we have invented a new EV adapter: very simple, spring loaded and a form fitting connector on top.

pushAdapterSWING
Introduction

Icon

2 times
faster

Icon

safer
form fitted

Icon

⌀ 70 mm
slim design

Icon

40 mm
spring range

Icon

interchangeable
top connectors

Icon

180°
swivel range

pushAdapterSWING
top connectors

VW
AUDI
BMW
PORSCHE GT
PORSCHE
TESLA

pushAdapterSWING
Technical data

Load capacity 900 kg
(per adapter)
Swivel range 180°
Move in height 120 - 150 mm
(depending on connector)
spring range 40 mm
Connector diameter ⌀ 70 mm
Bore hole supporting arm ⌀ 50 mm
Article number 112530

pushAdapterSWING
Video

pushAdapterSWING
in operation
